Low Frequency RFID Reader Board - 125 / 134KHz

5 review(s) | Add your review

LF RFID Reader Board with RS485/Bluetooth - Frequency: 125 / 134KHz

Antenna or IP68 case not included - please contact us for specifications.

The industrial low frequency RFID reader board with a read range of < 10 cms, specially designed for industrial and vehicle use.. This market leading board works within the frequency of 125KHz and 134KHz  (Multiprotocol FDX-B (134kHz) / HDX LF RFID (134kHz) / Em-marine (125kHz)).

Board Includes

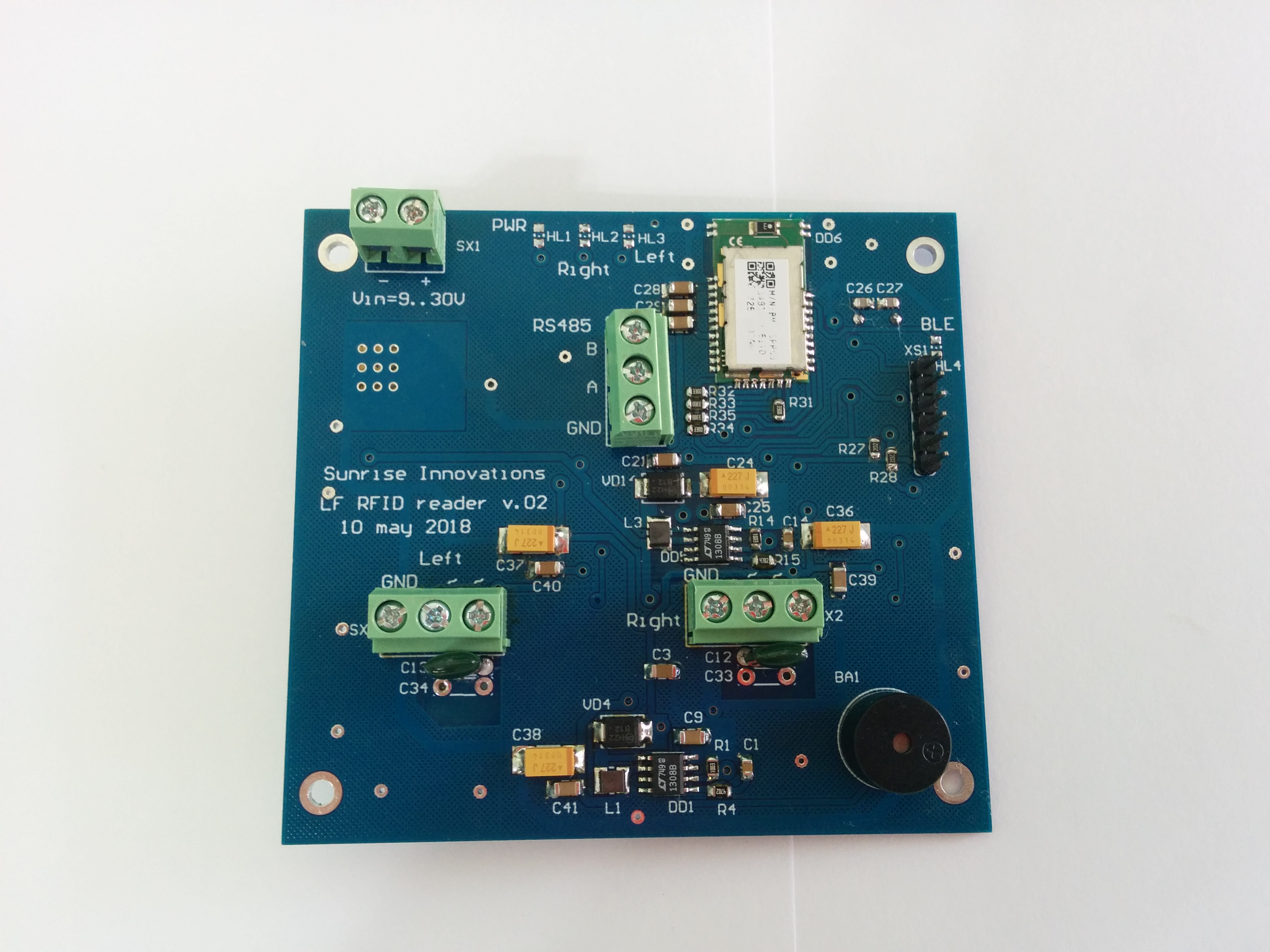

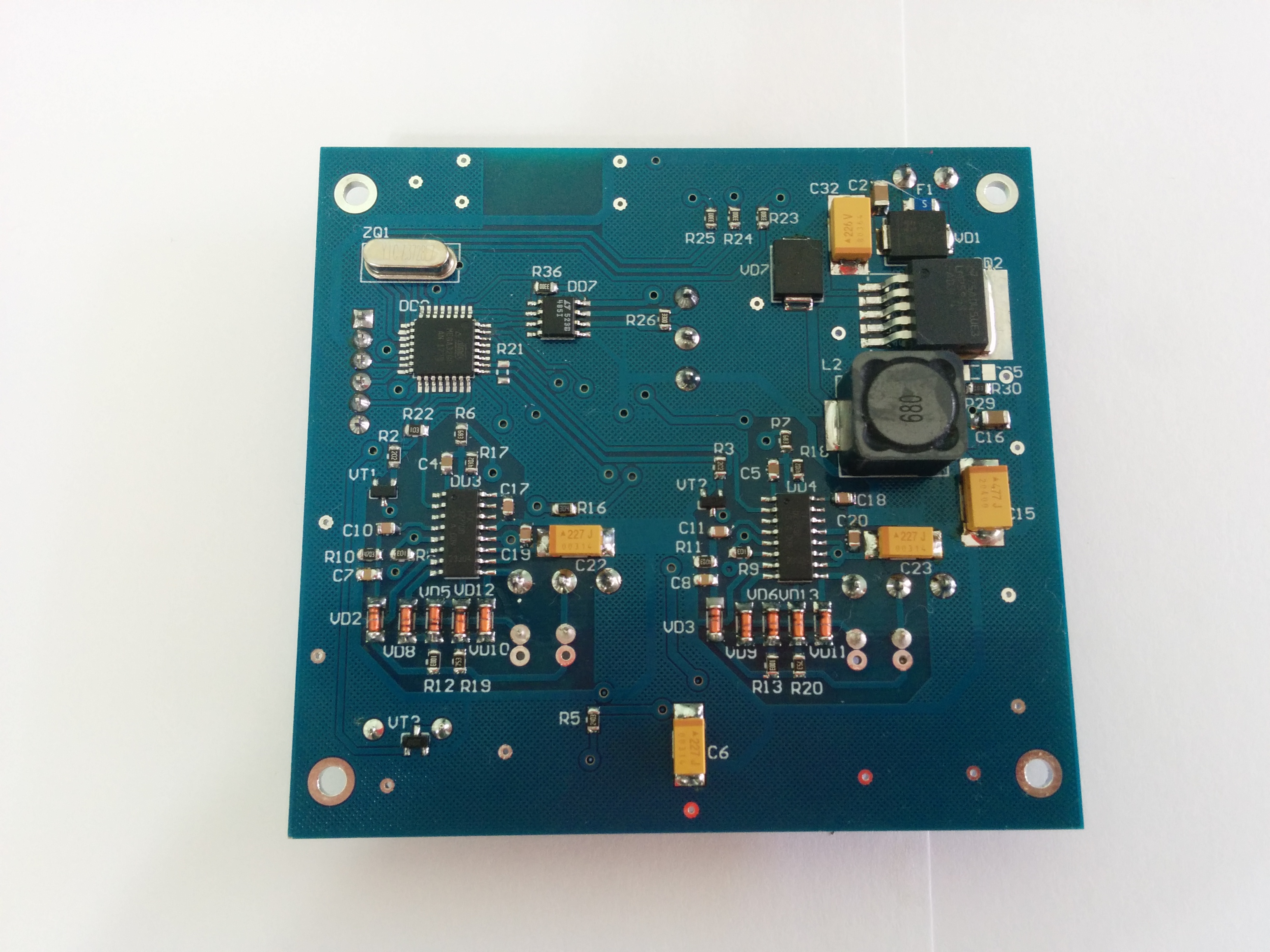

1 x LF RFID Reader Board [125KHz and 134KHz ]
Vehicle Inverter Inbuilt - 9 - 30 VDC
Output via RS485 and Bluetooth

Possible Uses / Projects

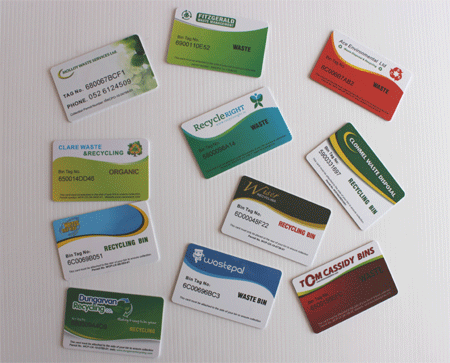

Waste management, managing bin collections where each bin has a LF RFID chip
Managing animals where every animal has a LF RFID chip (scanned during checking)
Warehouse access where staff have LF RFID Cards
Parts management where each item has a unique LF RFID sticker

Specifications
Supported Frequencies: all ranges in 125KHz and 134KHz
Supply Voltage: 9 - 30 VDC

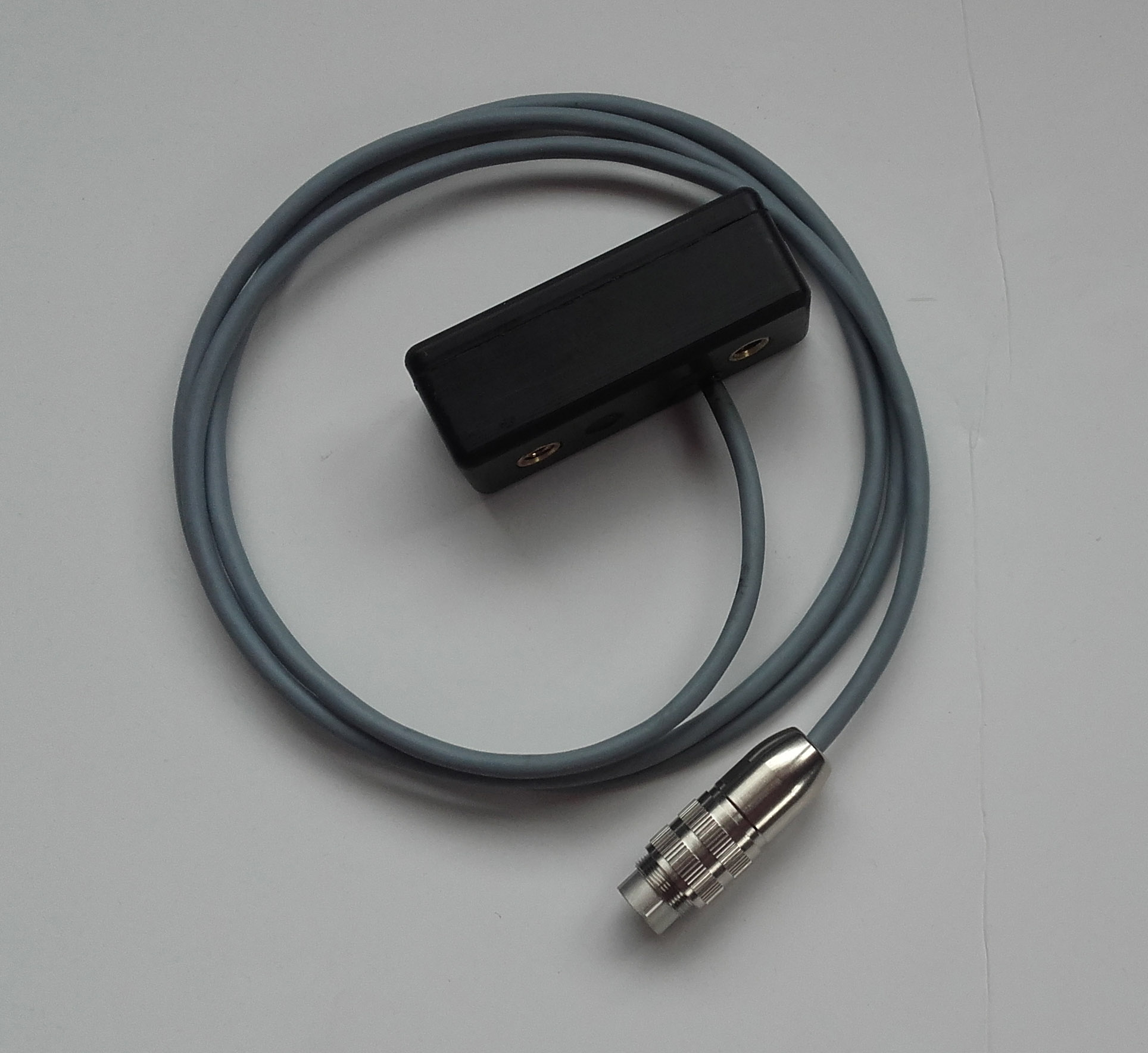

Inputs: 1 - 2 RFID antenna
Outputs: 4 x LEDs, Buzzer
Measurement: L100mm, W70mm, H15mm
Operation Temp: -20°C ... 60°C
Storage Temp: -20°C ... 60°C
Interface: RS485, Bluetooth
Read Range: up to 10cm (depending on read config, antenna and tags used)
Environment: Upon request the OEM Board can be delivered in a IP68 industrial housing

Reasons why you should buy this?
Industrial grade LF RFID reader, in stock and ready to go into your solution





Questions if deploying LF 134khz - we will need to know which RFID tags / chips you intend to deploy, 134 kHz FDX tags (SI default) or 134 kHz HDX tags.

Product Code :

Stock :

Price :

Quantity :

Total Price, € :

  • Description

LF RFID Reader Board with RS485/Bluetooth - Frequency: 125 / 134KHz

Antenna or IP68 case not included - please contact us for specifications.

The industrial low frequency RFID reader board with a read range of < 10 cms, specially designed for industrial and vehicle use.. This market leading board works within the frequency of 125KHz and 134KHz  (Multiprotocol FDX-B (134kHz) / HDX LF RFID (134kHz) / Em-marine (125kHz)).

Board Includes
1 x LF RFID Reader Board [125KHz and 134KHz ]
Vehicle Inverter Inbuilt - 9 - 30 VDC
Output via RS485 and Bluetooth

Possible Uses / Projects
Waste management, managing bin collections where each bin has a LF RFID chip
Managing animals where every animal has a LF RFID chip (scanned during checking)
Warehouse access where staff have LF RFID Cards
Parts management where each item has a unique LF RFID sticker

Specifications
Supported Frequencies: all ranges in 125KHz and 134KHz
Supply Voltage: 9 - 30 VDC
Inputs: 1 - 2 RFID antenna
Outputs: 4 x LEDs, Buzzer
Measurement: L100mm, W70mm, H15mm
Operation Temp: -20°C ... 60°C
Storage Temp: -20°C ... 60°C
Interface: RS485, Bluetooth
Read Range: up to 10cm (depending on read config, antenna and tags used)
Environment: Upon request the OEM Board can be delivered in a IP68 industrial housing

Reasons why you should buy this?
Industrial grade LF RFID reader, in stock and ready to go into your solution





Questions if deploying LF 134khz - we will need to know which RFID tags / chips you intend to deploy, 134 kHz FDX tags (SI default) or 134 kHz HDX tags.
