The leading vehicle video board with power inverter and the necessary sensors to drive any automated vehicle project. All kits come with source code and if you subscribe to our membership account you receive all code updates.
Kit Includes
-

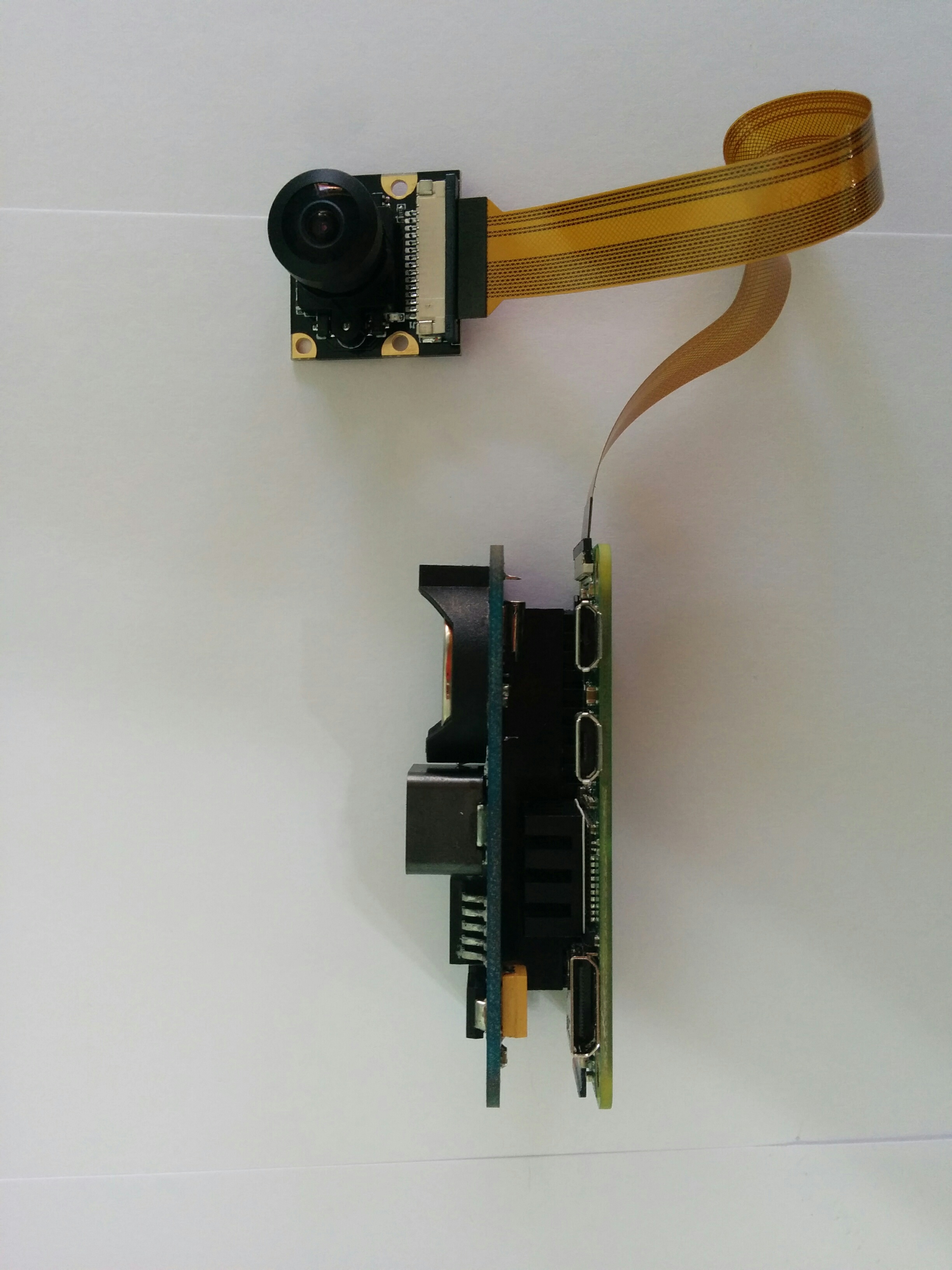

Camera Kit
-
PCB Board
-
Camera Lens
-
5 MP Omnivision 5647 Camera Module
-
Still Picture Resolution: 2592 x 1944
-
Viewing angle: 160 degrees
-
Camera angle: Size can be replaced
-
Video: Supports 1080 p @ 30 fps, 720 p @ 60 fps and 640 x480 p 60/90 Recording 15-pin MIPI Camera Serial
-
Power Inverter Board
-
Heat Sensor
-
Humidity Sensor
-
Real Time Clock
-

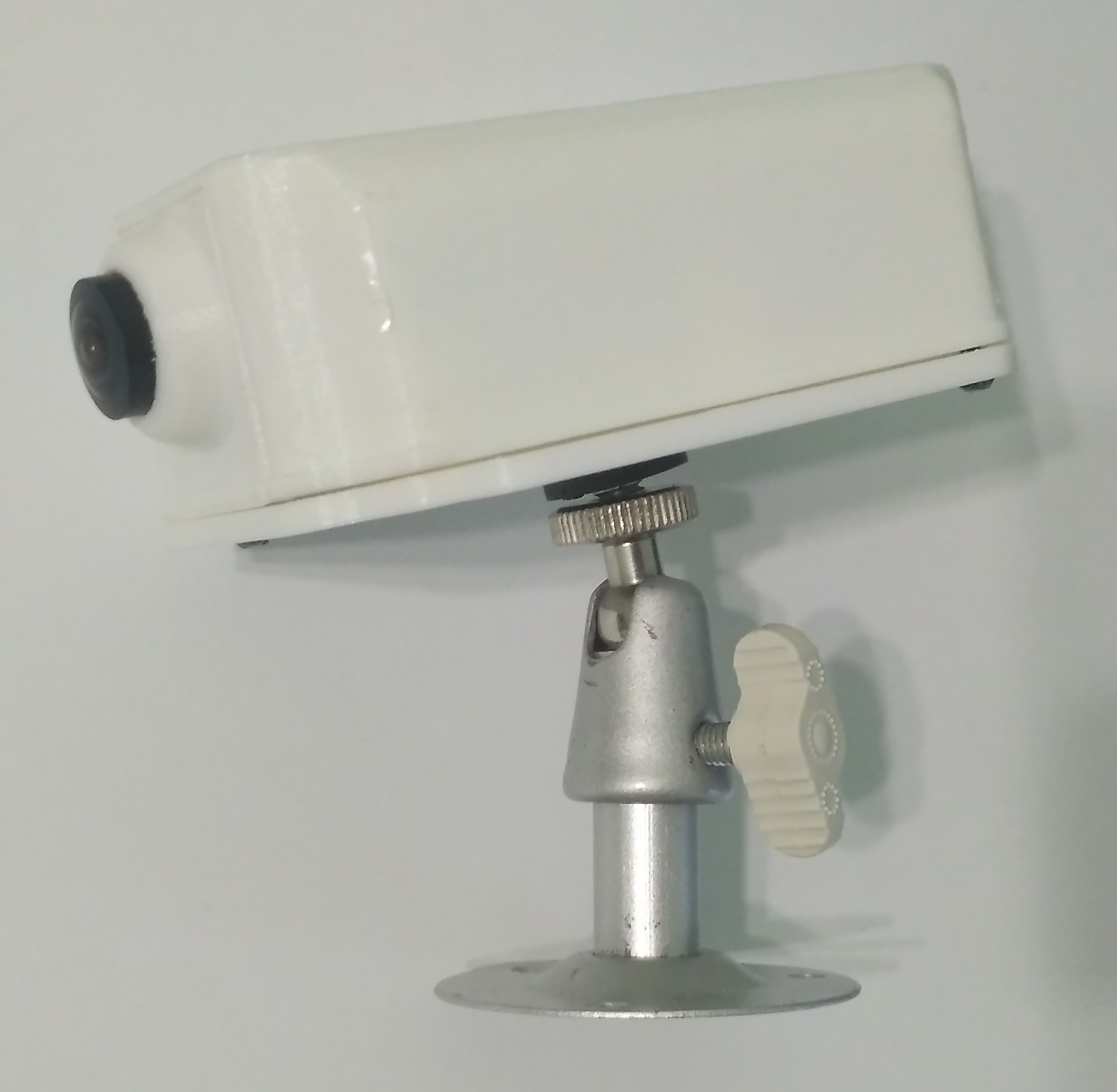

Base Vehicle Case IP65
-
64GB micro SD
-
SDK Source Code [Python] incl. Object Recognition
Possible Uses / Projects
-
Vehicle or Outdoor use
-
Monitor things/sites
-
Recognise actions
-
Item recognition
-
Number plate reader
-
QR code reader
Specifications
-
Supply Voltage: 9 - 30 VDC
-
Inputs: 1 camera
-
Outputs: 2 x LEDs, Buzzer (no buzzer on the device!)
-
Measurement: L100mm, W70mm, H15mm
-
Operation Temp: -20°C ... 60°C
-
Storage Temp: -20°C ... 60°C
-
Interface: USB, HDMI, Bluetooth
-
Environment: Upon request the OEM Board can be delivered in a IP67 industrial housing
Reasons why you should buy this?
Perfect product to add on to any complex vehicle video solution
